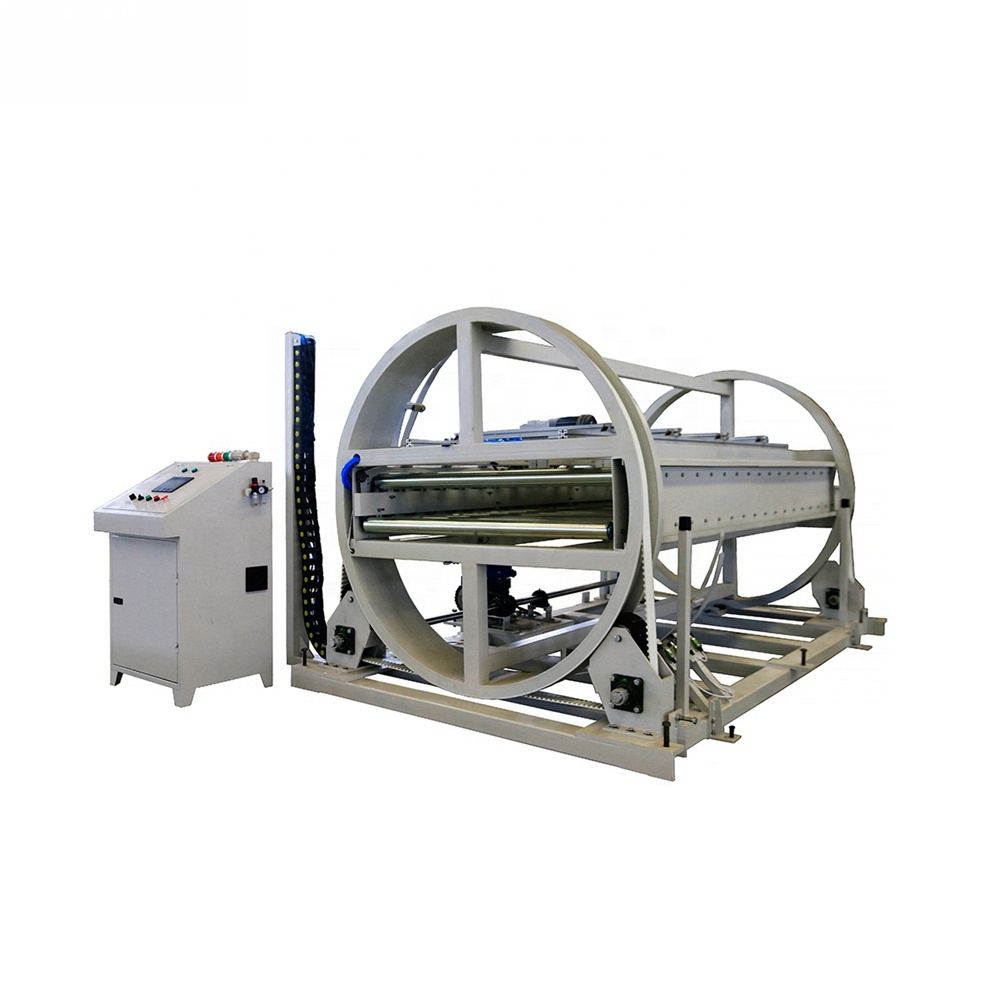

O Type Bundle Turnover

O Type Bundle Turnover

Capacity:5~50 Ton

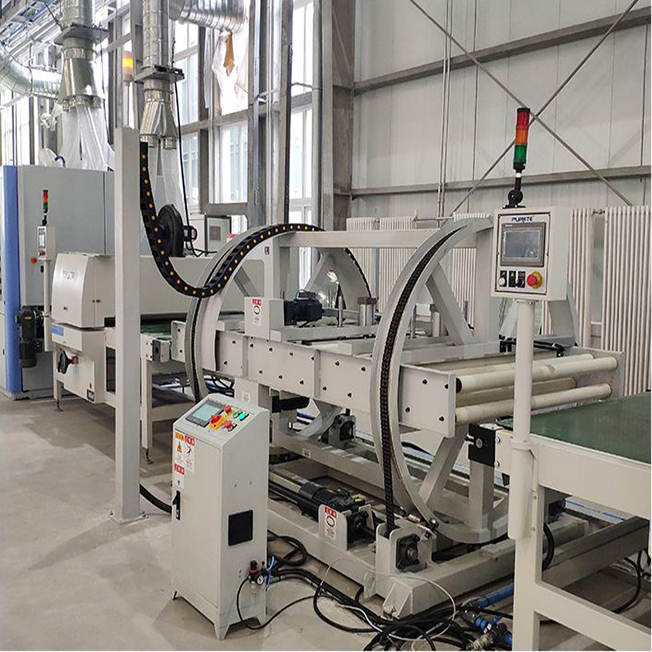

O type bundle turnover is for the overall turnover of the whole stack of sheet metal, applicable to a variety of production of automotive, electrical manufacturing, machinery processing and other industries.Adopts PLC control, touch-screen interface operation, complete safety protection system and fault diagnosis system.



Benefits & Features

O type bundle turnover is for the overall turnover of the whole stack of sheet metal, applicable to a variety of production of automotive, electrical manufacturing, machinery processing and other industries.Adopts PLC control, touch-screen interface operation, complete safety protection system and fault diagnosis system.

There are two different ways of clamping , pneumatic clamping and hydraulic clamping, both clamping can be automatically adjusted in the way of the clamping force to prevent the sheet -slide, the Pneumatic one is environment-friendly and do not pollute plate materials.

●  Special equipment, reliable quality

●  Force adjustable, wide application range

●  Touch screen man-machine interface.

●  Perfect fault diagnosis system

According to the logistics layout and the feeding way ,Product cn be customized.



Specs

a:3:{i:0;a:3:{s:5:”title”;s:5:”Specs”;s:2:”id”;s:5:”specs”;s:7:”content”;s:1326:”

Max. Turnover Capacity (Ton)10

15

Max. Turnover Length(mm)40004500
Max. Turnover Width(mm)2000

Structure

type

ClampingPneumaticHydraulicHydraulic
Dimension L*W*H(mm)9560*3700*37209560*3500*422010390*3500*4220
Weight(T)232425
Note:

1) The above technical parameters are for reference only and are subject to the actual device.

2) Customized Available.”;}i:1;a:3:{s:5:”title”;s:5:”Cases”;s:2:”id”;s:5:”cases”;s:7:”content”;s:1189:”
